Machine Tools Use and Performance：

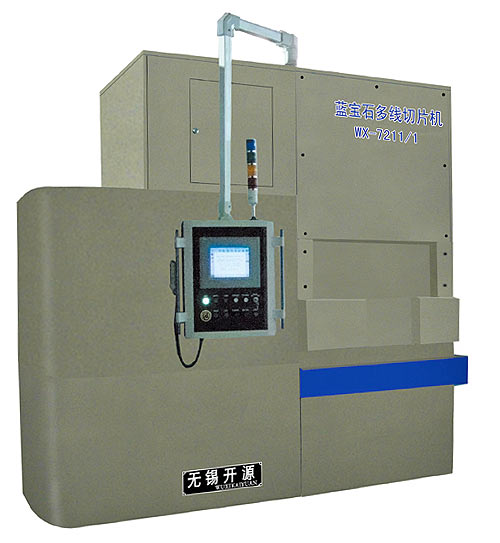

1. This machine is used in slicing processing of LED sapphire material.
2. This machine has high rigidity workbench; reliable and simple take-up and payoff transmission device; it also has the servo motor to control the tense and equips wire break device.
3. The metal wire from supply wheel to wire roller and take-up wheel are all driven by servo motor,.
4. The speed changes, tense changes, temperature of cutting fluid changes of workbench will be kept in database in the process of cutting.
5. The electric control is used the trunk control by Siemens; the temperature of mortar, quantity of flow can be controlled accurately.
6. The machine has the characteristics of less loss, high accuracy, high quality and high efficiency. It can satisfied different cutting technology requirement.

Equipment Technique parameter：

Maximum Size Diameter（Diameter）	Φ8 inch
Maximum Length	300mm
Stripping Diameter	0.25mm or depend on the requirements
Stripping Length	40km (max.)
Stripping Speed	Can be controlled by programmed， 15m/s(max.)
C.w. &c.c.w. Cutting acceleration 2.5m/s2(max.)	C.w. &c.c.w. Cutting acceleration 2.5m/s2(max.)
Cutting wire tense	15~40N
Feed Speed	0.1-2 mm/min,Can be controlled by programm
Lift Travel	280mm (max.)
Control Device	SIEMENS
Grinding Wheel Driven Motor	55Kw
Cutting Machine Feed/Recycle Motor	8Kw
Traverse Motor	0.82Kw
Workbench Lift Bench	0.88Kw
Tense Control Motor	2.51Kw
Cutting Fluid Pump Motor	4Kw
Machine Size（Length×Width×Heigth）	2800×1650×2875mm
Machine Weight	6000kg
Gross Power	80Kw
